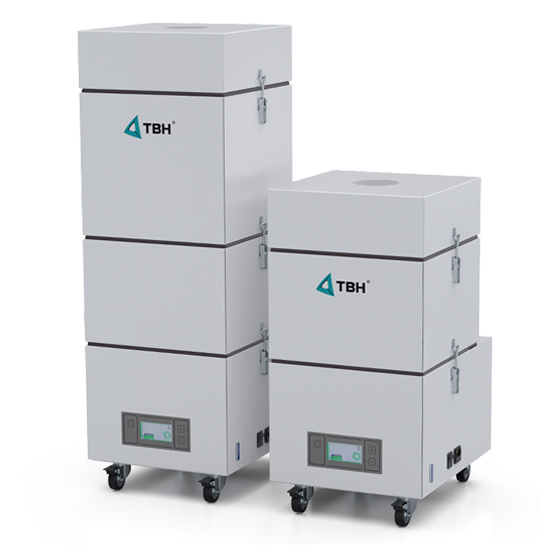

GL 230

The GL 230 is ideal for noise-sensitive environments such as laboratories and practice rooms. It is an environmentally friendly, energy-saving and quiet extraction system.

Technical data

Additional information

Air volume flow

max. 350 mÂł/h

Effective air volume flow

100 – 300 m³/h

max. static pressure

6000 Pa

Voltage

100-240 V

Frequency

50/60 Hz

Engine power

0.6 kW

Sound level

approx. 53 db(A)

Serial interface

25-pin Sub-D

Product variants

GL 230

Filter configuration:
Pre-filter mat (F5), particle filter (H13), activated carbon

GL 230 A

Filter configuration:
Pre-filter mat (F5), activated carbon

GL 230 Z

Filter configuration:
Particle filter (H13), Z-Linepanel Plus filter (F7)

GL 230 ZA

Filter configuration:
Particle filter (H13), Z-Linepanel Plus filter (F7), activated carbon
